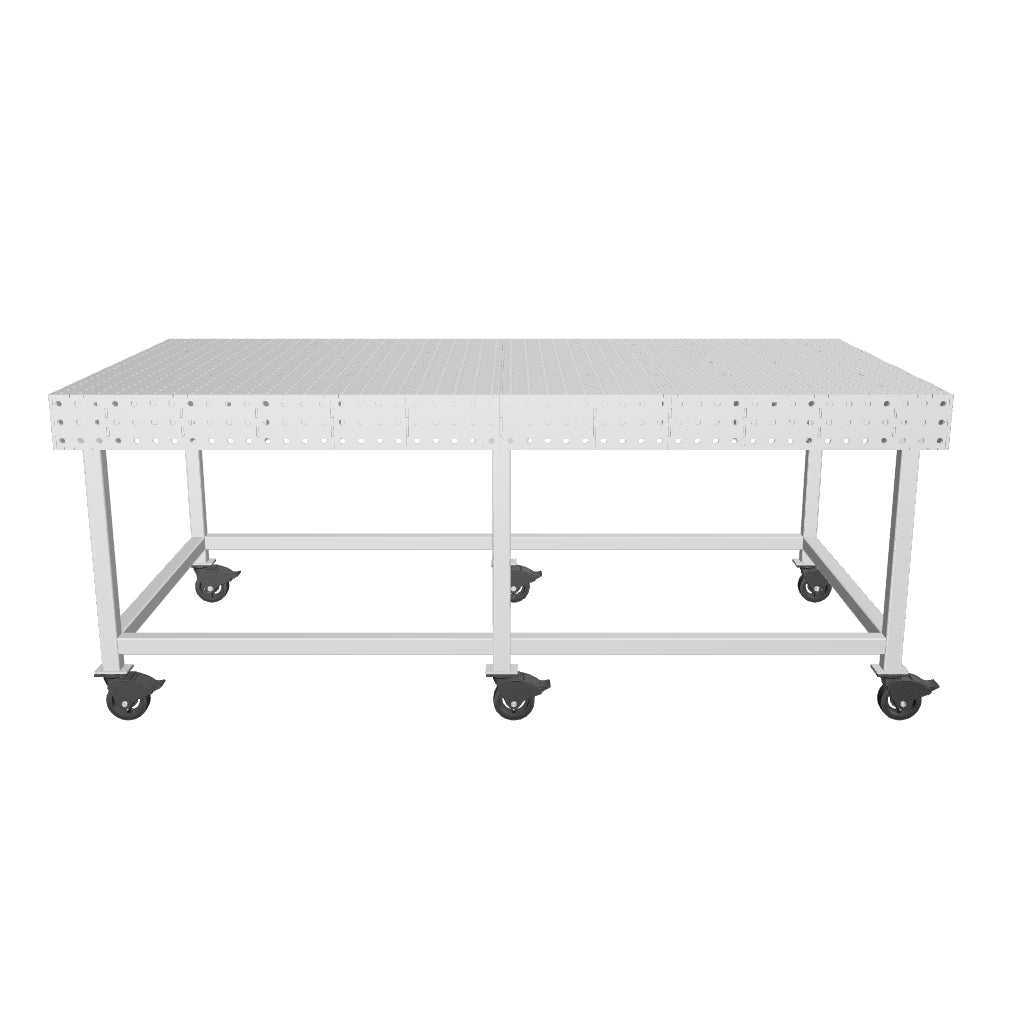

Elite Top Fixture Table – Precision Welding Table Kit
Upgrade your fabrication workspace with the Elite Top Fixture Table! This is a heavy duty, laser cut welding table designed for serious welders, fabrication shops, and DIY builders who demand accuracy, strength, and reliability.
Built from American made steel and engineered for flatness, this DIY weld together fixture table delivers professional level performance.
Why Welders Choose the Elite Top Fixture Table
Built for Heavy-Duty Fabrication
Manufactured from high-quality HRPO A36 steel, this table is made to handle everything from home garage projects to full production fabrication work.
Clamp Anywhere
Integrated fixture holes spaced 2" across the top and sides makes clamping quick and secure for part fit up, assembly, and welding.
DIY Weld-It-Yourself Kit
Building your own professional grade fixture table is now possible. All assembly plates and hardware included!
There is a $400 oversized item freight shipping charge on items over 96" long - we recommend using our48" x 92"table to avoid this fee.
Features
CNC laser cut mild steel construction
Available in 1/4", 3/8", and 1/2" top thicknesses
Integrated clamping holes on top and sides
Tab and slot internal rib structure for easy and accurate assembly
Designed for MIG and TIG welding applications
Heavy duty construction for garage or production shop use
Made from American manufactured steel
Table Configuration
With Legs & Casters
Without Legs & Casters
1/4" Top | 3/16" Ribs
804 lbs
632 lbs
3/8" Top | 1/4" Ribs
1063 lbs
891 lbs
1/2" Top | 1/4" Ribs
1261 lbs
1089 lbs
Important Assembly Notes
Verify the table is completely flat after bolting together and before welding
Ensure all support ribs fit tightly with zero gaps using flashlight to check for gaps
Minimal welding on support ribs is recommended to reduce warping - 1" welds spaced no closer than 6" apart is recommended
When welding, start at the center and work around the table to minimize heat input
